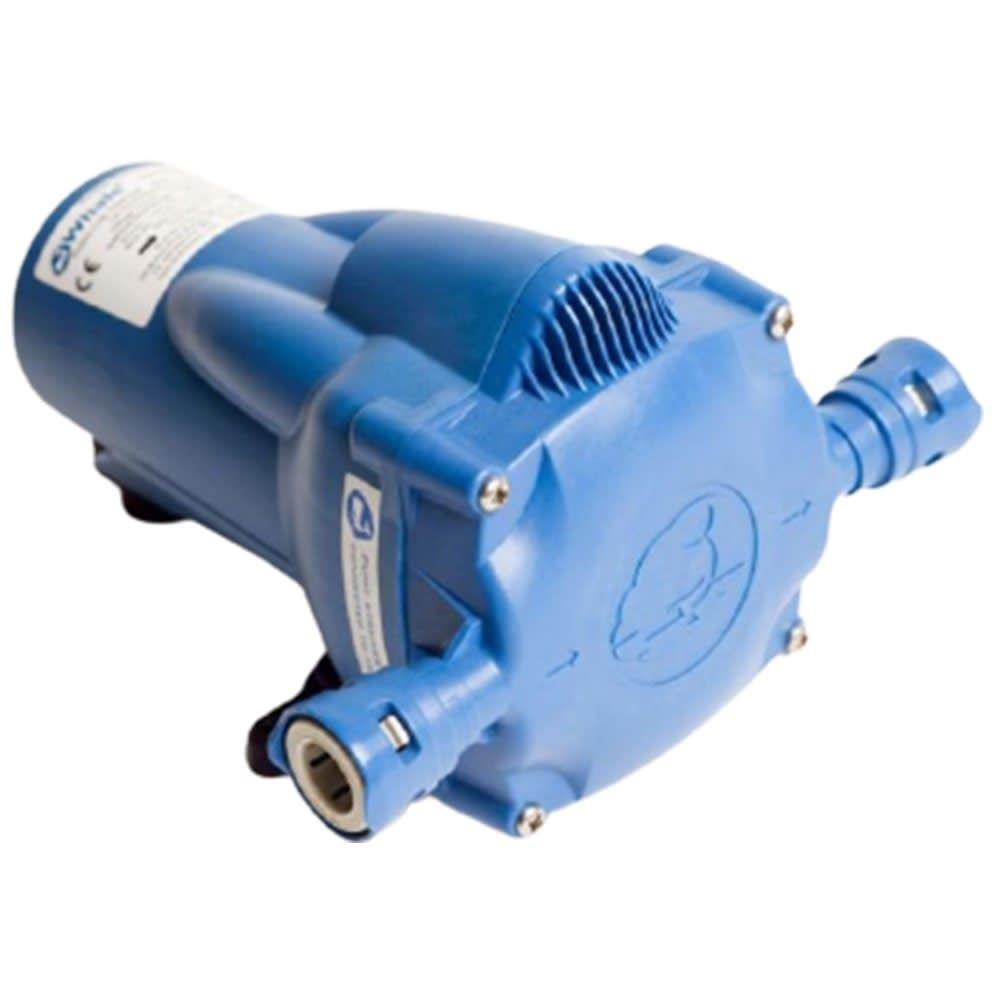

Whale Watermaster 12V Automatic Pressure Pump

Whale's Watermaster automatic pressure pump provides smooth, consistent flow to a variety of outlets. The self priming (up to 3m/10ft) pump is easy to install and provides quiet, automatic operation. The IP65 rated pump runs dry without damage and includes a strainer to protect the pump from debris.

Warranty Length:
2 Years.

Filter & Fittings Included:
1 x Strainer.
2 x 1/2" Threaded Connectors.
2 x 1/2" Barbed Connectors.

Key Features:

ABYC H-23.
Automatic operation - simply plug and play.
CE certified.
Completely integrated electronics.
Easy Installation - suitable for 15mm quick connect plumbing or 1/2" threaded hose connections.
Fully sealed protective motor housing.
High flow rates to a variety of outlets.
IP67 rated.
ISO 8846, ISO 10133.
Quiet Operation.
Self priming Up To 3m (10ft).
Smooth, constant flow.
Suitable for use with salt or fresh water.

Specifications:

Product Code FW0814 FW1214 FW1215

Open Flow Rate (per min) 8 Litres. 11.5 Litres.

Voltage 12V dc.

Recommended Fuse Size 5 amps (automotive) 7.5 amps (automotive)

Hose Connections Whale Quick Connect 15mm Female Connections
2 x 1/2" threaded connections and 2 x 1/2" barbed connections included

Maximum System Pressure 2 bar (30 psi) 3 bar (45psi)

Current Draw 4 amps 6 amps

Materials Pump Body: Glass-filled Polypropylene, Motor Casing: Aluminium, Power-coated Steel. Diaphragm, Valves, Feet: Monprene, Seals: Nitrile, Fasteners: Stainless Steel

Materials In Contact With Fluid Pump Body: Glass-filled Polypropylene, Motor Casing: Aluminium, Power-coated Steel. Diaphragm, Valves, Feet: Monprene, Seals: Nitrile, Fasteners: Stainless Steel.

Service Kits AK1316 Replacement Head, AK1319 Replacement Strainer (for freshwater)
AK1329 Replacement Strainer (for saltwater) use.
